Electric
Oil Scavenge Pump
NOW
SHIPPING WITH UPGRADED HEATSINK - same
style/performance heatsink as Exa-Pump®!

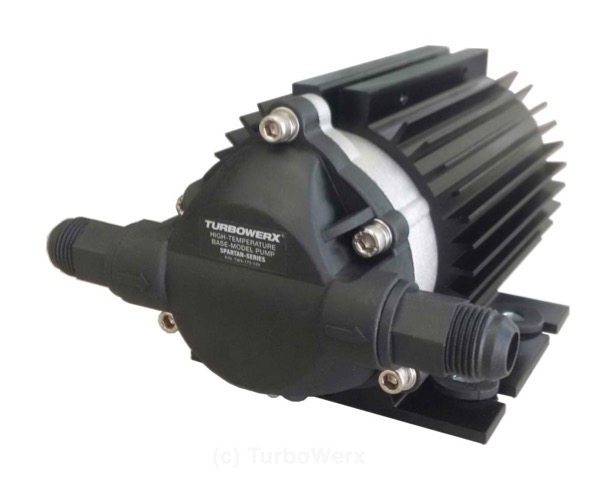

Proven, powerful, and quiet. Manufactured exclusively for
TurboWerx, this custom engineered pump is designed to
scavenge hot turbocharger drain oil from anywhere to
anywhere in automotive applications. Time-tested, proven
reliability over years, and with its
1.75GPM (105GPH) scavenging capacity, it
is powerful enough to scavenge oil from two turbos. It will
self-prime/draw from over 5 vertical feet, and pump the oil
as high as 20 vertical feet. The Exa-Pump®-inspired custom black
anodized finned heatsink lowers operating temperature,
further enhancing reliability.
Whether the application moves 1 oz of oil a minute or up to
1.75 gallons a minute, 'under-flow' applications are no
problem. In fact, the TurboWerx pump may be run dry
indefinitely. May be operated up to 100PSI pressure.
This pump will fit inside a 7.25" x 4.0" x 4.0" box. It
weighs less than 5 pounds, and includes anti-vibration
mounting hardware. It is specified to handle a maximum oil
temperature of 300+F, and the power
consumption is 12 volts @ less than 3.5 amps. Pump inlet
and outlet fittings are standard 3/8" NPT. Also suitable
for other fluids, such as rear-end, engine coolant, and
water. Not compatible with ATF.
This pump is an ideal economical solution for most
turbocharger scavenge applications. For higher performance
and even greater reliability, see our exciting premium
model "Exa-Pump™" here.
TurboWerx offers a limited warranty on the parts against
defects in material and workmanship. Do not remove or
replace ANY fasteners. Warranty and terms of sales. Do not
exceed 100PSI operating pressure. or 300F rated
temperature, or >25% rated voltage (12V), else
warranty voided.
Download Manual
If you already have already have a competitor’s pump,
and wish to be as prepared as possible against its failure,
please consider the Fail-Safe Alarm system.
This system also provides protection and peace of mind
in case of installation error, or other external event
or accident that results in the disabling of one of our
pumps.
For the ultimate in assurance (and insurance) against any
error in installation, or any reason something
caused your pump to stop doing its job, consider the
TurboWerx Fail-Safe
Alarm.
TurboWerx Part # TWX-175-12V
Price: $249.00
