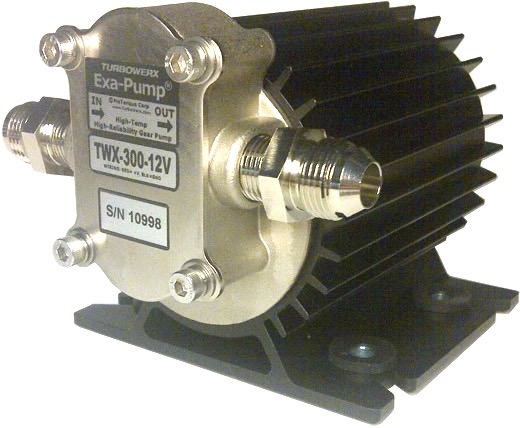

Exa-Pump®
Ultra High-Performance Electric Oil Scavenge
Pump
An Industry First.
The TurboWerx Exa-Pump® is the ultimate achievement in
high-temperature, high-reliability pump technology. This
pump was designed from the ground up to handle the most
extreme conditions found in any motor vehicle, with a
special emphasis on turbocharger oil scavenging
applications. Built on extremely rugged spur gear
technology, there is simply no other pump that can be
compared to this hi-temp, 10,000 hour continuously rated
pump. Aerospace/military-grade quality finally
available...and at an affordable price. The specifications
and materials explain why the Exa-Pump remains #1:
12
VDC*, 24 VDC and 120 VAC** VERSIONS
AVAILABLE!
• 24Vdc version - Perfect for the
European, and Commercial/Heavy-equipment/Truck Market.
• 350F Fluid Temperature
• 2-3GPM Scavenge Pump Rate, up to 75PSI as Pressure
Pump
• 120VAC** version: 4 GPM Open-Flow Pump Rate. (Also
used for fast, hot oil changes at the shop or business)
• Hardened Bronze Gear Pump Rotors
• 10,000 Hour Rated Dual Hybrid Ball Bearings
• 10,000 Hour Rated Over-sized Brushes
• Highest Rated Temperature (class H or higher)
Insulated Copper Motor Windings
• Black Anodized Extruded Aluminum Heatsink
• Nickel-plated Pump Head
• Stainless Steel Pump Head Fasteners
• 3/8" NPT Female Threaded Pump Head Ports
• Set of two 3/8” NPT -> AN Nickel-plated
Adapters Included - Options are -6AN, -8AN, or -10AN Sizes.
(If size preference not specified at order time, -6AN
supplied.)
• High-Temperature Power Wiring
• Weatherproof Connectors
• Rubber-isolated Mounting Bracket
• Low-vibration, Quiet
• 6.2" x 4.1" x 4.1" size, 6 lbs
• Not designed for use as a fuel pump
• Warrant void if 350F rated temperature is exceeded.
• Rated voltage may be exceeded by up to 25%. Warranty
void if applied voltage exceeds 25% of rated voltage as
labeled.
• For 100% compatibility with 16-18V set-ups on race
vehicles, choose the 24V Exa-Pump®
• Operating Current: 12 VDC version is <5A nominal,
20A maximum. 24 VDC version is <2.5A nominal, 10A
maximum. 120VAC** (50-60Hz) is <0.7A nominal, 5A
maximum. Pump MUST be protected by circuit breaker or fuse
- 12V pump 20A, 24V pump 10A, 120V pump 5A. A fuse or
circuit breaker will protect the pump from permanent damage
in case of rotor-lock from ingesting foreign debris. Note
“nominal” means the typical current in a
typical installation as a scavenge pump with a free-flowing
output. When the temperature of the oil is very low, the
oil’s viscosity is much greater, and the pump will
consume more current until the oil warms up. The fuse or
circuit breaker current value takes into account the
additional current needed for pumping oil at low
temperatures, as well as operation as a pressure-pump
<75PSI (operation above 75PSI is not guaranteed or
warranted). Exceeding any of these ratings will void
warranty.
• Two-year Warranty - warranty void if pump is
modified, or current ratings exceeded. Warranty only for
genuine TurboWerx products purchased from authorized
resellers. No user-serviceable parts within the pump,
warranty void if pump is opened. Do not remove or replace
ANY fasteners. Warranty void on 120VAC** version if power
adapter is removed or bypassed. Warranty and terms of sales.
**120VAC version only: Applications for
the 120VAC version must use the supplied power
adapter. Supplied power adapter cannot be
removed/bypassed, as it contains required circuitry for
proper operation. Warranty void if power adapter is
bypassed.
Exploring
the Details.
350F Fluid Temperature. No other pump
comes close. All the materials used in the engineering of
this pump were chosen to support extreme duty at extreme
temperatures - constantly.
2-3 GPM Pump Rate. Most other pumps have a
specified rating of <2GPM. The Exa-Pump's® 2-3 GPM of
open-flow (0-PSI) gives the ability to easily scavenge from
any turbo type or configuration, including the full flow
twin turbo set-ups. for serious supplemental engine oil
and/or transmission/rear-end fluid circulation through
external radiators. This is also enough flow for coolant
circulation in air-water intercooler systems. And finally,
these pumps can generate up to 75 psi pressure at slightly
reduced flow-rates, thus can be used in divorced
turbocharger oil supply pump applications as well.
120VAC version: 4 GPM Pump Rate (Also used for
fast, hot oil changes at the shop or
business)
Hardened Bronze Gear Pump Rotors. Bronze
spur gears create the toughest, most rugged pump head
available. Gears are angle cut for quiet operation. All
engine manufacturers use either gerotor or spur gears for
their oil pump. Exa-Pump® uses the same ultra-reliable
technology
10,000 Hour Rated Dual Ball Bearings. No
other competitor's pumps use ultra-precision,
ultra-high-temperature ball bearings - ALL the others use
cheap, commodity, made in China 2000-2500 hour ball
bearings, or worse yet, 1000 hour bushings. High
temperatures drastically reduce these numbers
further. This is a fundamental limit on pump life.
Exa-Pump® uses a dual set of expensive 10,000-hour rated
ball bearings.
10,000 Hour Rated Over-sized Brushes.
Exa-Pump® engineers designed in over-size brushes to
increase brush life to beyond 10,000 hours. The competitors
have settled on cheap, commodity <2000 hour parts.
Black Anodized Extruded Aluminum Heatsink.
The extruded heatsink is integral to supporting the
extended temperature capability.
Nickel-plated Pump Head. Nickel-plating
serves as a tough, anti-corrosion barrier for the pump
head.
Stainless Steel Pump Head Fasteners. Grade
12.9, corrosion-proof stainless steel Allen fasteners are
used exclusively for the pump head assembly.
3/8" NPT F Threaded Pump Head Ports.
Industry standard port sizes used.
AN Male Nickel-plated Adapters. Two
AN->3/8NPT fittings included for convenience. -6AN,
-8AN, or -10AN can be chosen. (If no choice specified, -6AN
are provided.)
Hi-Temp Wiring. High-temperature rated
wiring to support extreme environments.
Weatherproof Connectors. Standard GM
WeatherPack connectors.
Rubber-isolated Mounting Bracket.
Exa-pumps® use a strong steel bracket with rubber isolation
mounts with an industry standard footprint for easy
upgrading of existing systems.
Low-vibration, Quiet. The pump head gears
are precision, angle cut. The gears are sized to reduce the
motor's RPM. This results in much quieter operation, with
far less vibration than the competitor's.
Power Requirement. The pumps have a wide
operating range of ±30% of rated (nominal) voltage. All
specifications assume a nominal Voltage. Current
requirement for 12 VDC version is typically <5 Amps.
Current requirement for 24 VDC version is typically <2.5
Amps. 120 VAC version typical current is <0.7 Amps.
Application must use protective safety fusing.
Size. The Exa-Pump® length is 6.2" long,
with a 4.1" wide mounting bracket, and 3.85" diameter
motor/heatsink. Mounted height is 4.1". The Exa-Pump®
occupies a smaller volume than all the competition. The
weight is 6 lbs.
2-Year Warranty. TurboWerx offers a
special 2-year extended version of our limited warranty on the parts against
defects in materials and workmanship for the Exa-Pump®
products. Virtually all others do not offer a warranty
of any kind, let alone 2 years. Pumps that are returned
under warranty claim must be inspected and analyzed at
Turbowerx in accordance with our warranty.
A Totally New Standard
is Set.
Every detail in the Exa-Pump® design has been scrutinized
and engineered for performance far exceeding any existing
pump. The net result is a pump with 2x the performance and
10x the reliability of competitor's best offerings. The
Exa-Pump® is the final statement in turbocharger electric
scavenge pump technology. It is simply the best.
12VDC
Version:
TurboWerx
Part # TWX-300-12V
Price:
$399.00
24VDC
Version:
TurboWerx
Part # TWX-300-24V
Price:
$399.00
120VAC Version:
TurboWerx Part # TWX-300-120V
Price: $419.00
